EC Geared Motors Type UEG, OEG

EC Geared Motor UEG 513 T with Flat Gear Unit FB 30 lupe
EC Geared Motor OEG 513 T with Spur Gear Unit SF 30 lupe
EC Geared Motor OEG 513 T with Hollow Shaft Worm Gear Unit GB 130 lupe
EC Geared Motor OEG 513 T with Worm-Spur Gear Unit ZB 45 lupe

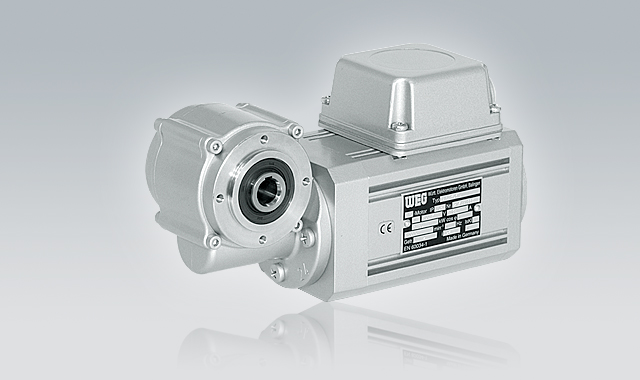

EC Geared Motor UEG 303 T with Hollow Shaft Worm Gear Unit GB 12 lupe
EC Geared Motor UEG 303 T with Double Worm Gear Unit GF 23 lupe
Single Worm Gear Units Type 12, 13, 14, 15
Voltage 1) 230 V
Frequency 50 oder 60 Hz
Power 60 - 300 Watt
Motor Speeds 1300, 2000, 3000 min-1
Type of protection IP 54
Ratios Typ 12 - 5:1 up to 55:1
Typ 13 - 5:1 up to 56:1
Typ 14 - 6,75:1 up to 30:1

1) Supply Voltage Electronic Controller.

Hollow Shaft Worm Gear Units Type 12, 13, 14
Voltage 1) 230 V
Frequency 50 oder 60 Hz
Power 60 - 300 Watt
Motor Speeds 1300, 2000, 3000 min-1
Type of protection IP 54
Ratios by Hollow Shaft Typ 12 - 12:1 up to 50:1
Typ 13 - 10:1 up to 56:1
Typ 14 - 10:1 up to 30:1

1) Supply Voltage Electronic Controller.

Double Worm Gear Units Type 23, 24
Voltage 1) 230 V
Frequency 50 oder 60 Hz
Power 60 - 160 Watt
Motor Speeds 2000, 3000 min-1
Type of protection IP 54
Ratios Typ 23 - 25:1 up to 4200:1
Typ 24 - 50:1 up to 6000:1

1) Supply Voltage Electronic Controller.

Spur Gear Units Type 30, 60
Voltage 1) 230 V
Frequency 50 oder 60 Hz
Power 130 - 500 Watt
Motor Speeds 1300, 2000, 3000 min-1
Type of protection IP 54
Ratios Typ 30 - 4:1 up to 51:1
Typ 60 - 13:1 up to 49,4:1

1) Supply Voltage Electronic Controller.

Worm-Spur Gear Units Type 45, 48
Voltage 1) 230 V
Frequency 50 oder 60 Hz
Power 60 - 500 Watt
Motor Speeds 1300, 2000, 3000 min-1
Type of protection IP 54
Ratios Typ 45 - 25:1 up to 300:1
Typ 48 - 33:1 up to 400:1

1) Supply Voltage Electronic Controller.

Hollow Shaft Worm-Spur Gear Units Type 45, 48
Voltage 1) 230 V
Frequency 50 oder 60 Hz
Power 60 - 500 Watt
Motor Speeds 1300, 2000, 3000 min-1
Type of protection IP 54
Ratios by Hollow Shaft Typ 45 - 25:1 up to 300:1
Typ 48 - 33:1 up to 400:1

1) Supply Voltage Electronic Controller.

Flachgetriebe mit Hohlwelle Typ FB 30
Voltage 1) 230 V
Frequency 50 oder 60 Hz
Power 130 - 500 Watt
Motor Speeds 1300, 2000, 3000 min-1
Type of protection IP 54
Ratios Typ FB 30 - 7,3:1 up to 72,7:1

1) Supply Voltage Electronic Controller.
